Extech EX830 True RMS 1000 Amp AC/DC Clamp Meter with Infrared Thermometer

Product description

Theses clamp-on multimeters priovide a built-in IR thermometer with laser pointer that makes troubleshooting heat sensitive areas simple. Features include data hold, Min/Max, autoranging with manual range button, auto power off, and an easy-to-read 4000 count backlit dual LCD display. Peak hold captures inrush currents and transients, and models 26834-22, -24 include true RMS and a type K thermometer probe. Units ar CAT III, 600V rated. Model 26834-26 is CAT IV 600V rated. Clamp meter, multimeter and infrared thermometer all in one! Locate hot spots and overheating equipment with built-in IR thermometer

Amazon.com

Compact and powerful, the Extech EX830 1000-Amp True RMS AC/DC Clamp Meter with Infrared Thermometer provides the versatility of multiple meters in one convenient device. The EX830 measures AC/DC voltage and current, resistance, diode, continuity, frequency, and capacitance. It also includes a built-in infrared thermometer for detecting invisible hotspots, a DC Zero function, a Type K bead wire temperature probe, and True RMS to ensure accurate measurements without distortion from electronic devices. A large, backlit display allows for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation.

1000A True RMS AC/DC Clamp Meter with IR Thermometer At a Glance: Accurately reads electrical measurements, including DC current Built-in, non-contact infrared thermometer detects invisible hot spots Type K bead wire probe for measuring temperature Large LCD screen with backlit display for clear viewing Durable, ergonomic design for easy one-handed operation Three-year limited warranty on parts and labor

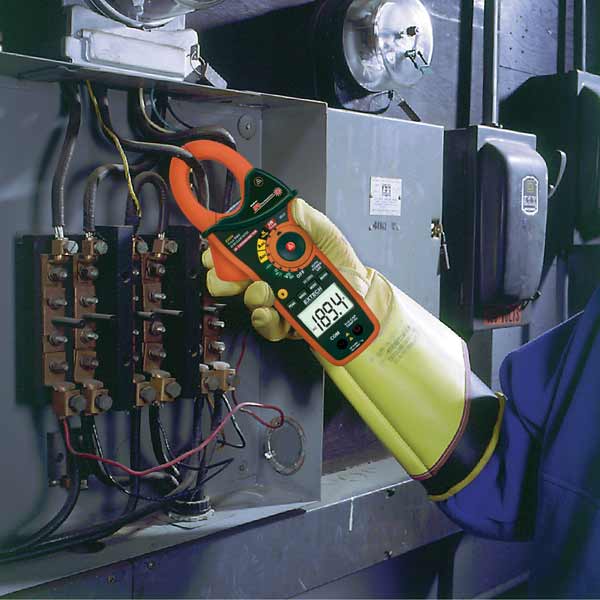

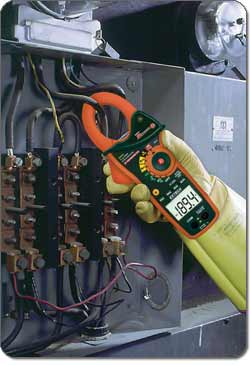

EX830 clamp-on multimeter with built-in InfraRed Thermometer is ideal for industrial applications. View larger.

True RMS Prevents Distortion from Electronic Devices
It can be very difficult to make accurate current and voltage readings in industrial and commercial applications when electronic devices are present. Fluorescent lights, motor drives, computer power supplies, and other electronic systems can distort the AC waveform, making it hard for averaging meters to get an accurate read. True RMS uses a more advanced formula to compensate for this kind of distortion.

Built-In Non-Contact Infrared Thermometer
Find hot spots quickly and safely, even when they're hidden, with the built-in non-contact infrared thermometer. The convenient thermometer has no cables or probes to connect, break, or lose. Just point and shoot, and you get the results in seconds. The laser pointer helps you make sure that the invisible problem spots you're measuring line up exactly with what you can see. The thermometer has an eight-to-one distance to target ratio, allowing measurements in areas that are normally difficult or unsafe to reach.

Type K Bead Wire Probe Measures Temperatures
The included Type K bead wire probe allows you to take temperature readings inside air conditioners, refrigerators, motors, bearings, pumps, and many other devices that emit heat. Temperatures can be measured from -4 to 1,400 degrees Fahrenheit (-20 to 760 degrees Celsius).

Large LCD Screen and Ergonomic Body
Readings on the EX830 are easy to see on the large, 4,000-count, backlit LCD display. For added convenience, it also features an auto power-off to preserve your batteries. Its ergonomically designed, double-molded housing is durable enough to stand up to constant use. Weighing less than 14 ounces, the Extech meter offers a comfortable grip for one-handed operation.

It measures a slim 10-3/5 by 4-3/10 by 2 inches (H x W x D), and runs on one 9-volt battery.

Warranty Information
The Extech EX830 1000-Amp True RMS AC/DC Clamp Meter with Infrared Thermometer is backed by a manufacturer's three-year limited warranty on parts and labor.

What's in the Box
Meter, test leads, Type K bead temperature probe, battery, carrying case, and owner manual.
